FENNER Power Transmission Accessories

  • Home -
  • Power Transmission Accessories

Power Transmission Accessories

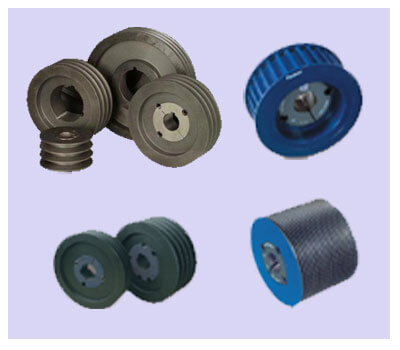

Taper - lock Dual Duty Pulleys Classical V\ Wedge, Poly-V, Timing and HTD drives

  • Dual Duty grooves to perfectly match classical V and Spacesaver wedge belt.
  • Taper lock pulleys for Poly-V timing HTD drives.
  • Caters to drives up to 200kw with speed ratio up to 1: 7
  • Taper lock : "shelf to shaft "
  • Over 710 standard sizes.
  • custom- build large pulleys for higher power transmission.

HRC Flexible Jaw Coupling

  • Higer power transmission and misalignment capacity .
  • withstands temperature from- 40 c to 100 c .
  • 8 sizes power rating from o.33kw to 33kw at 100 rpm .
  • Available in B/F/H types of Flanges

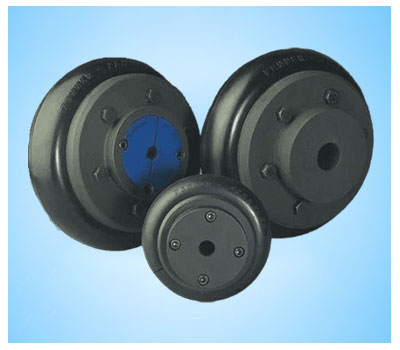

Fenaflex Tyre Couplings

  • Highly elastic, backlash free, absorb shocks and dampen vibrations.
  • Choice of tyres - Standard, Neoprene or Fire Resistant Anti- Static (FRAS) .
  • 17 sizes with power rating 0.22 kw to 132 kw at 100 RPM.
  • Available in B/F/H types of Flanges

Bush Type Flexible Couplings

  • Simple & compact in construction .
  • Transmits torque through high tensile steel bolts.
  • 26 sizes with power rating from 0.81 kw to 2069 kw at 100 RPM.

Gear Couplings

  • High mechanical flexiblity- curved tooth profile .
  • Carbon steel forged\ cast hubs with hardened teeth .
  • 19 sizes- power rating 11.5 kw to 12700 kw at 100 RPM .
  • Variants of Shear pin, Spacer, Torsion Shaft types.

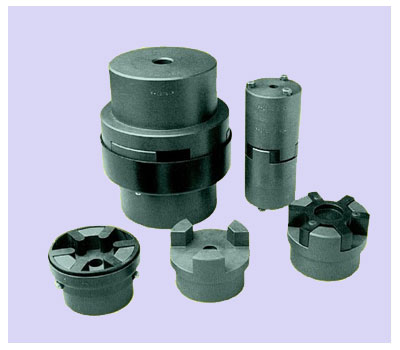

Essex Jaw Coupling

  • Flexible inserts take care for incidental angular, parellel and axial misalignments.
  • Quick and easy installation.
  • Range of Standard, External spider and Cushion type with power rating from 0.21kw to 22.40kw at 100rpm.

Gear box \ Geared Motor

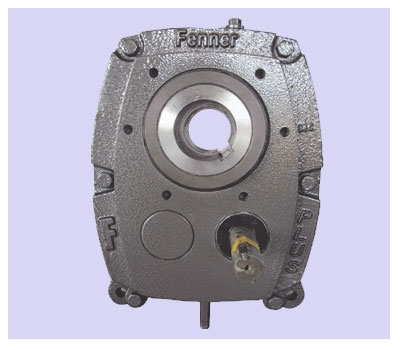

Shaft Mounted Speed Reducer (SMSR Plus) - Helical
  • Mounted directly on shaft No foundation required .
  • Eliminates coupling and external belt take - up arrangement .
  • Options : Foot Mount / Flange Mount / Motor Mounting / Vertical Shaft Mounting / Back Stop.
  • 8 sizes B, C, D, E, F, G, H, and J Plus.
  • Torque(O/P) - 6930 Nm at 10 RPM
  • 3 Ratios 5 : 1, 13 : 1 & 20 : 1
  • Wide choice of output speeds obtainable by use of appropriate input V- Belt drive .
  • choice of Hub bores .
  • Delivers 98% efficiency per stage of reduction .
